Description
The OASE SubFlo 2 D pack brings together all the equipment to aerate a deep water body of 2 to 10 m from the bottom, up to 8,000 m² depending on its depth and shape. A base installed on the bank, 2 diffusers placed on the bottom and the tubing to connect them: you receive a complete, consistent installation, ready to set up.
What the pack contains
| Item | Qty | Unit price | Total |
|---|---|---|---|
| SubFlo Base 2 D – base with SAD 120 compressor | 1 | €2,450.00 | €2,450.00 |
| SubFlo Diffuser D – deep-water diffuser | 2 | €350.00 | €700.00 |
| SubFlo Tubing L 30 m – from the base to the water's edge | 1 | €109.95 | €109.95 |
| Weighted SubFlo Tubing H – from the edge to the diffusers: 30 m or 150 m | 1 | €160.00 / €189.00 | €160.00 / €189.00 |
| Pack total | €3,419.95 (30 m) / €3,448.95 (150 m) |
The pack price is the sum of the prices of the items sold separately.
How the installation is laid out
Schematic diagram: Tubing L in orange; the Tubing H lengths to each diffuser in grey.

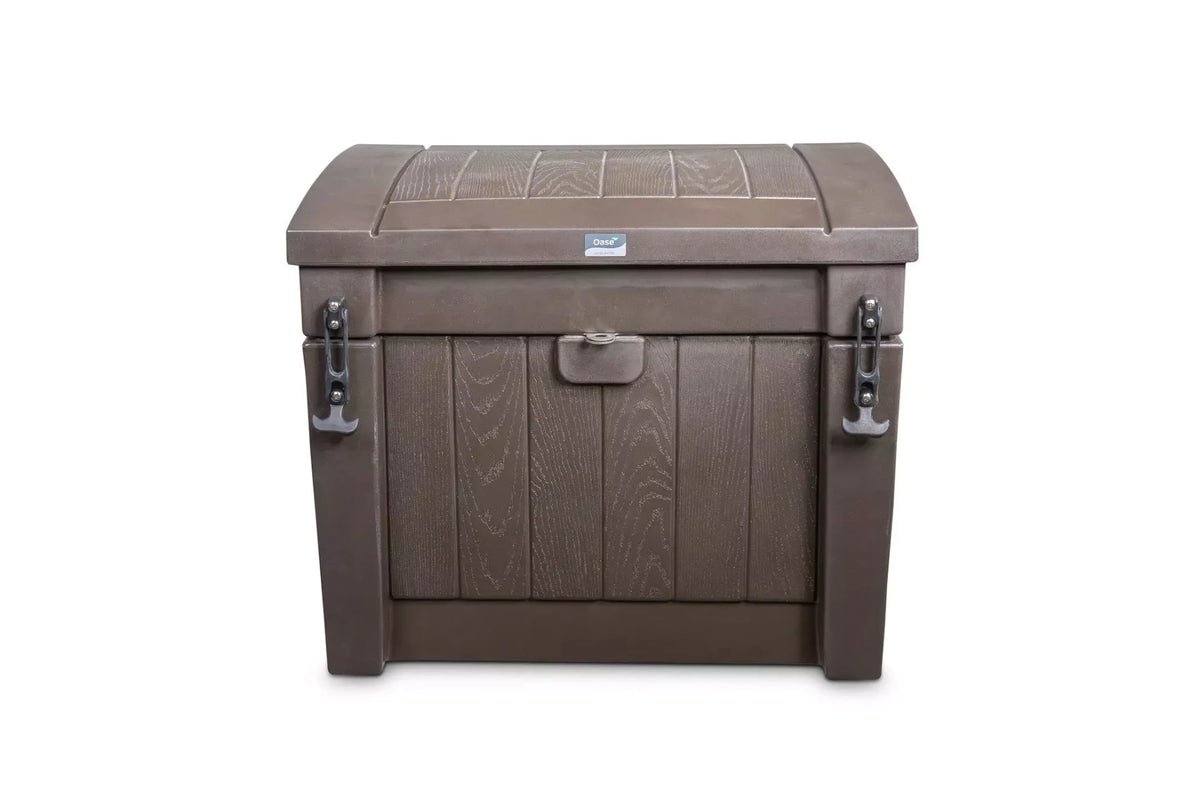

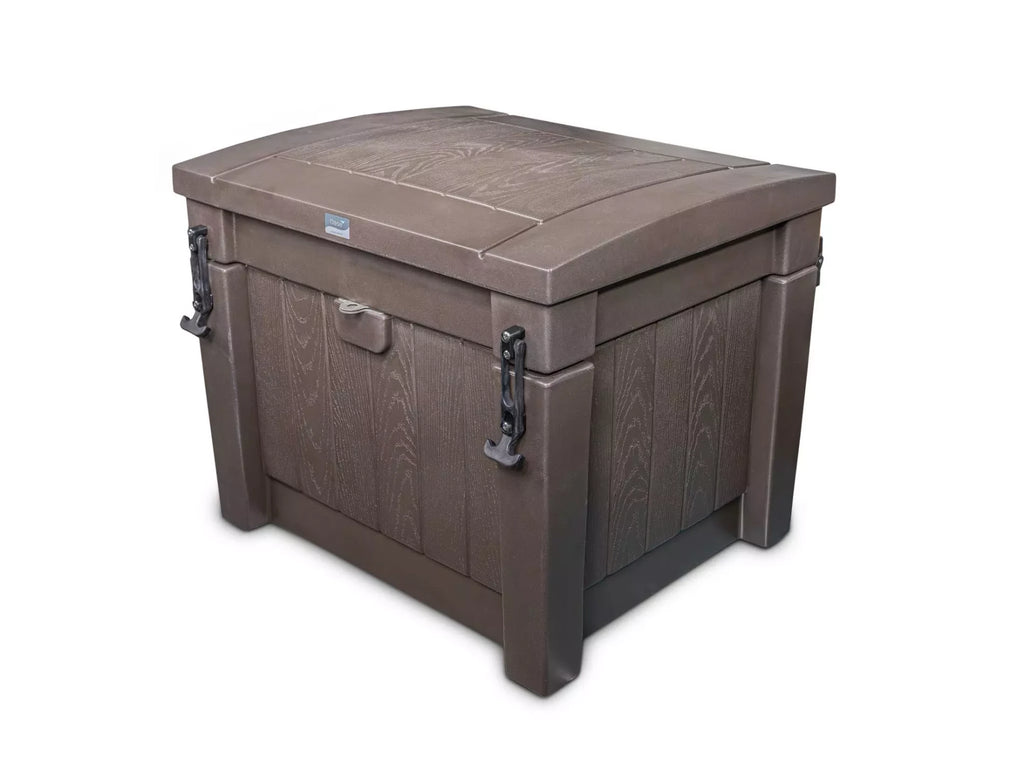

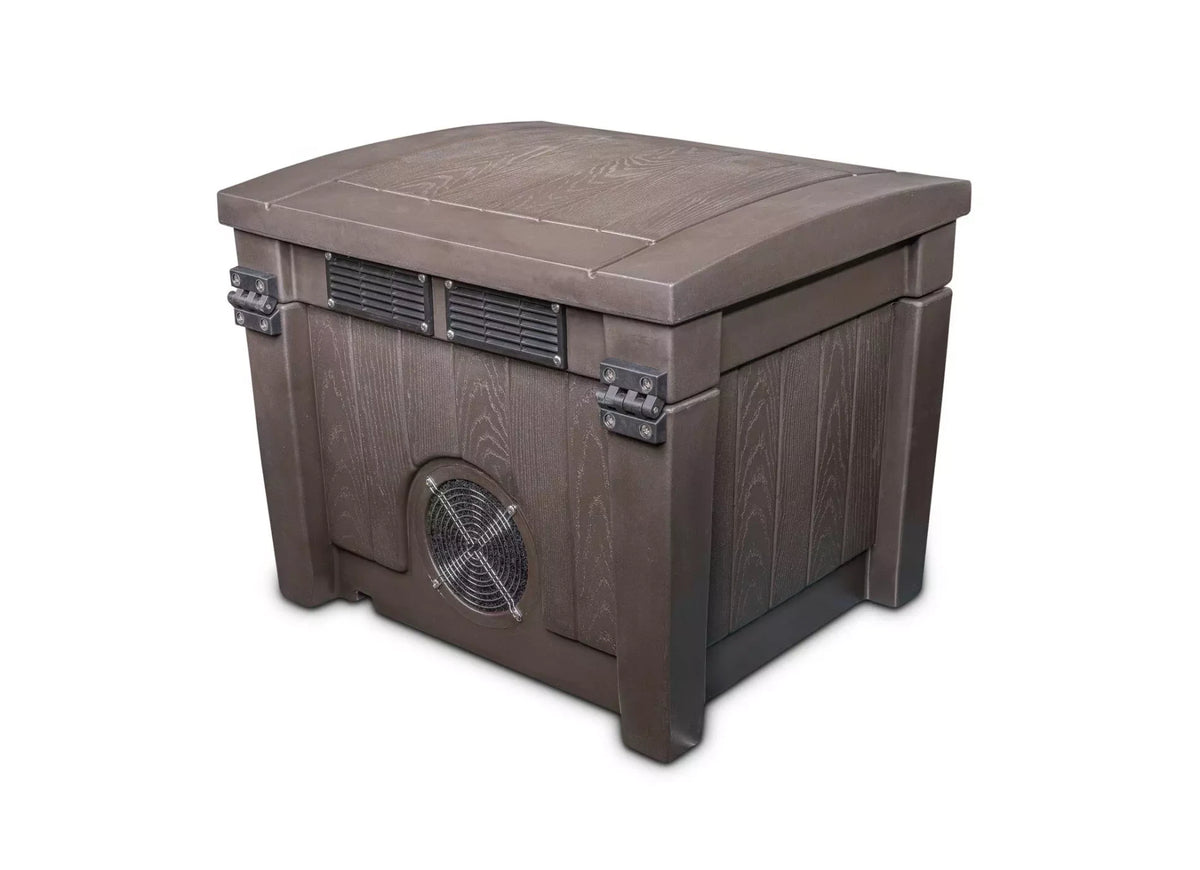

- The base on the bank: the SubFlo Base 2 D is installed in a dry spot, near a 230 V socket. Its SAD 120 compressor delivers up to 120 L of air per minute, continuously.

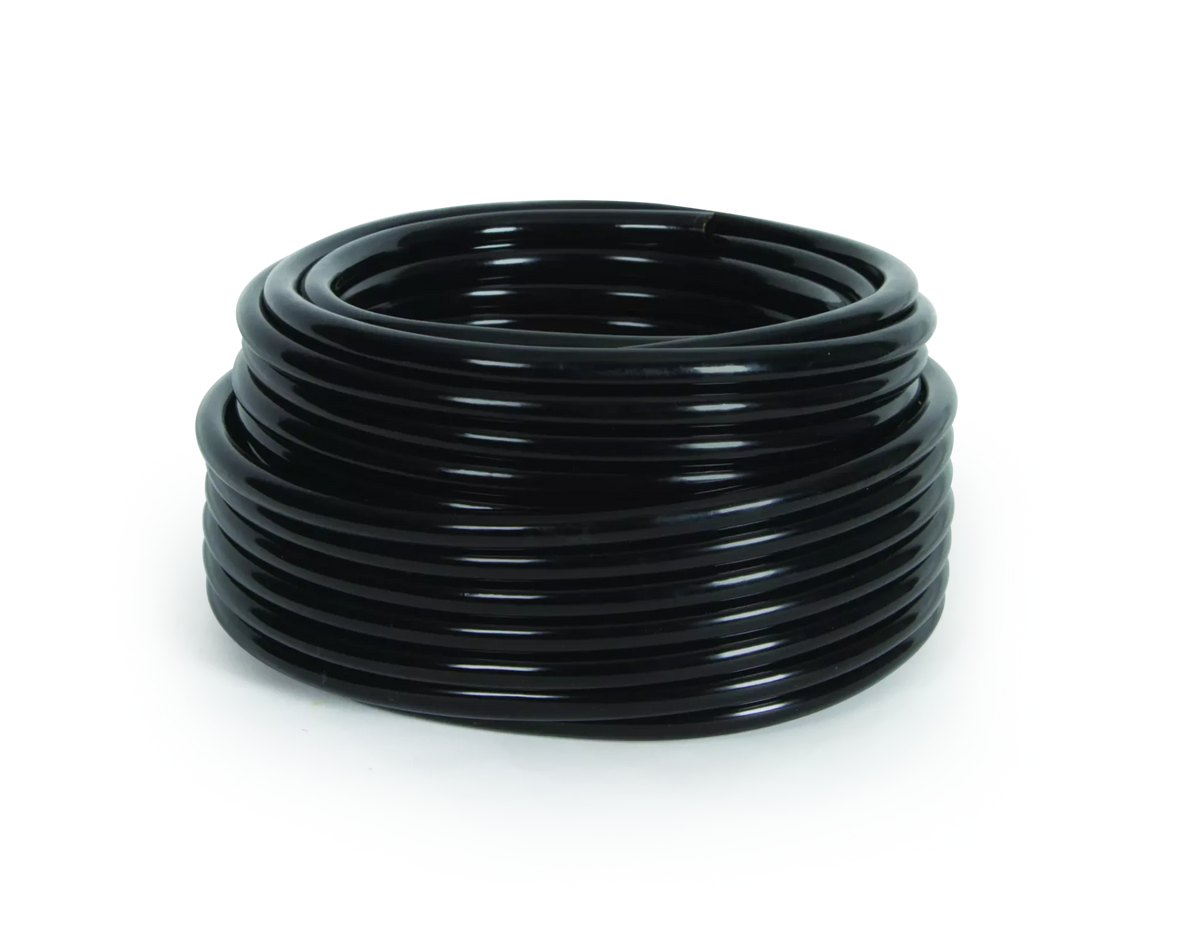

- From the base to the water's edge: the Tubing L. UV-resistant and low-friction, it carries air from the base to the edge of the pond, over a maximum of 30 m.

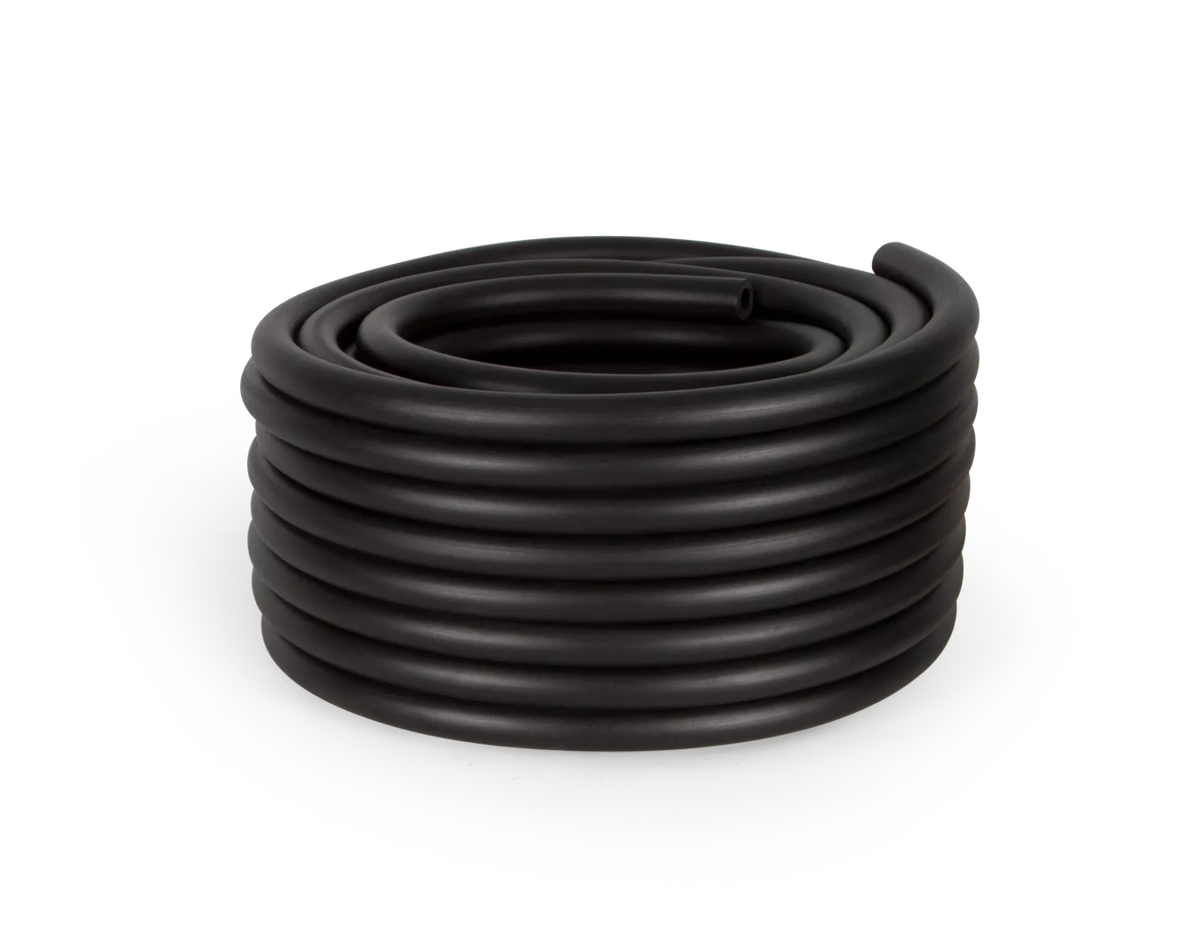

- From the water's edge to the diffusers: the Tubing H. Weighted, it sinks on its own and stays on the bottom. The roll is cut into one length per diffuser, matched to the distance of each.

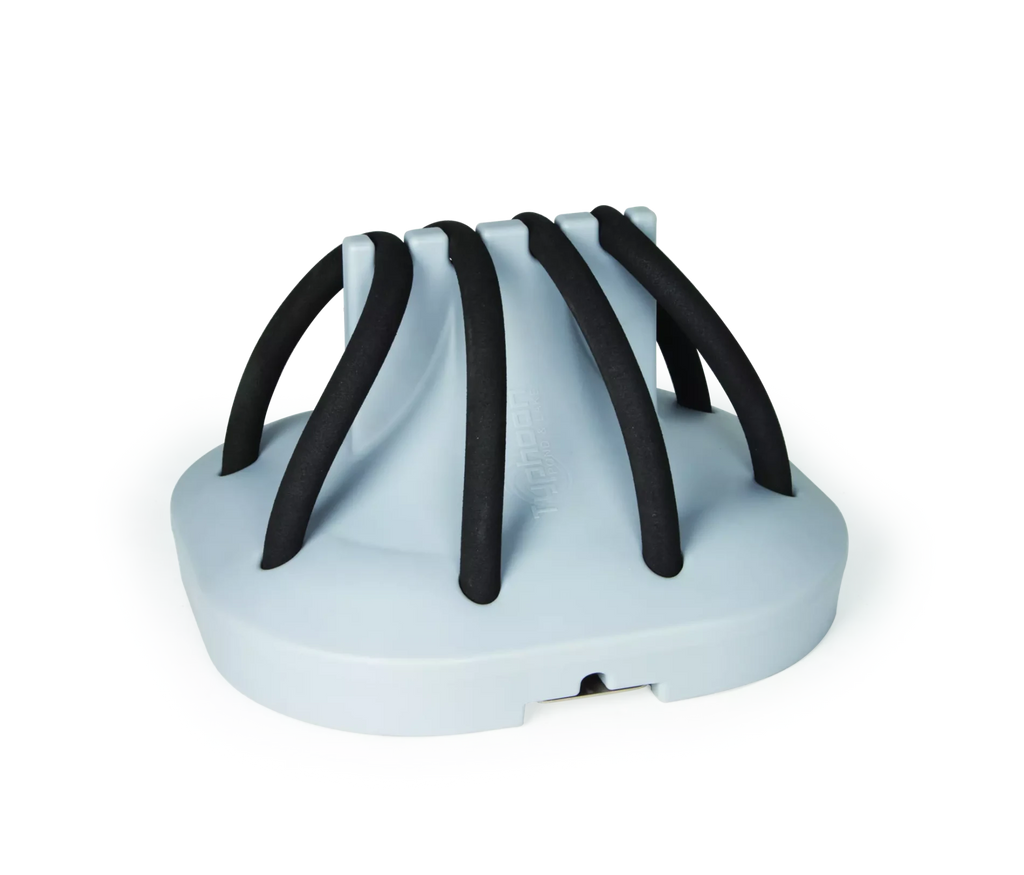

- On the bottom: 2 SubFlo Diffuser D, supplied empty and weighted on site with gravel or sand. Their ultra-fine bubbles oxygenate the bottom and circulate the entire water column.
30 m or 150 m of weighted tubing?
| Option | For whom? | Length per diffuser |
|---|---|---|
| Tubing H 30 m | Diffusers placed near the edge | About 15 m each |
| Tubing H 150 m | Diffusers to be placed far from the bank, in the centre or in deep holes | About 75 m each |
The deepest areas, where aeration is most useful, are often far from the bank. Not sure? Send us a plan and we will calculate the distances.
Why aerate from the bottom?
In summer, a deep water body separates into layers: warm, oxygenated water at the surface; cold water at the bottom that becomes depleted of oxygen. Organic matter decomposes poorly there: sludge builds up, gases such as hydrogen sulphide and methane form, and the nutrients released keep feeding algae. By injecting air at the bottom, SubFlo breaks up this stratification: oxygen reaches where it is lacking and the bacteria that digest organic matter regain good working conditions.
The SubFlo system on video
Installation specifications
| Specification | SubFlo 2 D pack |
|---|---|
| Indicative surface area | Up to 8,000 m² (depending on depth and shape) |
| Water depth | 2 to 10 m |
| Compressor | SAD 120, up to 120 L/min, continuous operation |
| Power supply | 230 V / 50-60 Hz, 500 W, 10 m cable |
| Aeration points | 2 SubFlo Diffuser D (EPDM, up to 9,000 L/h of air each) |
| Tubing | Tubing L 30 m (Ø 12 mm, UV-resistant) + Tubing H 30 m or 150 m (Ø 8 mm, weighted) |
| Water | Fresh water only (not for swimming pools or seawater) |
Have our experts validate your installation
Before ordering, send us the surface area, the maximum depth and a plan or photo of your water body at support@aquipond.com, or call +32 (0)10 86 03 54. We will check that the pack is suitable and advise you on diffuser placement and the tubing length to plan for. Aquiflor has been supporting water body managers since 1998, and travels across Belgium and France to assess your water body.
For a water body that stays healthy
Aeration creates the conditions; bacteria do the work. Combine SubFlo with Aquipond Bactovase to digest accumulated sludge, and check the KH of the water: below 7 °dH, mineralise first with Aquipond Nautex.
